MULTIFUNCTION CONTROL : WHAT IS "C" button that is below "MENU" BUTTON supposed to do??

Home   Forum Rules    Forum Help  Conversion Tools

Please Register to enjoy additional Member Benefits
Author Post
citroenroen1
Mon Jun 03 2024, 06:03am
Joined: Apr 18 2024
Member No: #5495
Location: Los Angeles

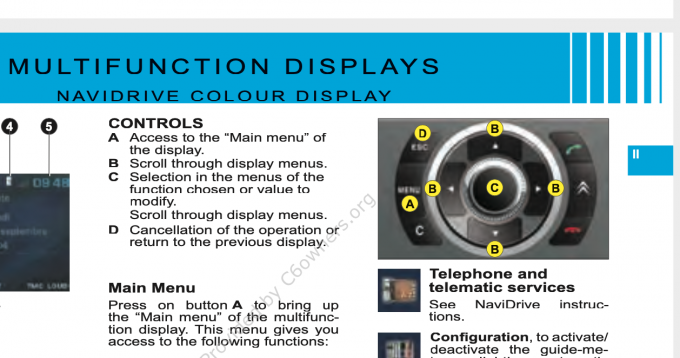

I HAVE ATTACHED A SCREENSHOT OF MY MULTIFUNCTION CONTROLs for the Multifunction Display.
My C6 is a 2006. I cannot find an actual owner's manual for that year of C6.
The attached picture is from the C6owners downloads :but there seems to be no explanation for "C" button.

Below the Menu button, there is "C" button .
WHAT does the "C" button do ?


Hattershaun
Mon Jun 03 2024, 06:52am
Joined: Dec 19 2010
Member No: #320
Location: Bedfordshire, UK
Button ‘C’ is basically the confirmation button to accept whatever option is displayed on the screen.
Like ‘enter’ on a computer keyboard.
C6Dave
Mon Jun 03 2024, 08:44am

Joined: Oct 01 2009
Member No: #1
Location: Northumberland
citroenroen1 wrote ...

My C6 is a 2006. I cannot find an actual owner's manual for that year of C6.

The main difference between the early handbook and the 2007 one is the radio/sat nav unit which went from maps on a 'CD' to built in hard drive RT3 > RT4 IIRC

Nothing else changed and the unit can be upgraded as covered in this thread: - Click Here -
Website
c6kev
Mon Jun 03 2024, 06:31pm
Joined: Dec 02 2013
Member No: #1508
Location: Wales
The button below the menu button (labelled "C" on the control itself, but not annotated in the car handbook), is basically a backspace button for data entry in the address book/phone directory. Refer to Page 5 of the Navidrive manual, - Click Here - where it is annotated as "30":

"30 Deletion of the last character entered (short press) or of the entire line (long press)."

Good luck with the car,

Kevin
