Transmission Gear oil replace
Home   Forum Rules    Forum Help  Conversion Tools

Please Register to enjoy additional Member Benefits
Author Post
rozen77
Thu Jul 10 2025, 03:52pm
Joined: Jul 05 2025
Member No: #5897
Location: Tel Aviv
 Hello Friends,

I want to change the transmission oil,
what is Transmission oil specification I need?
there is also Filter?

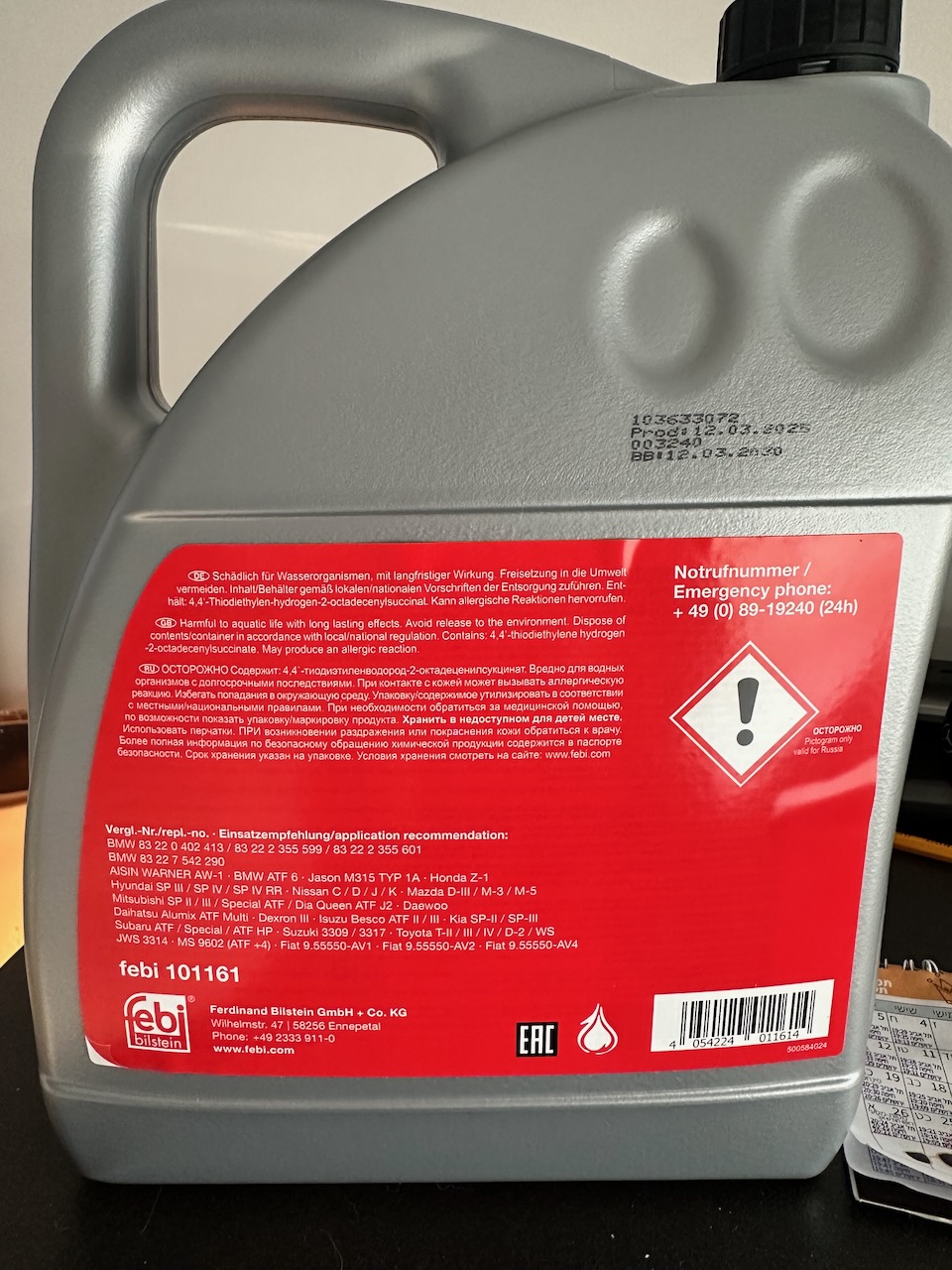

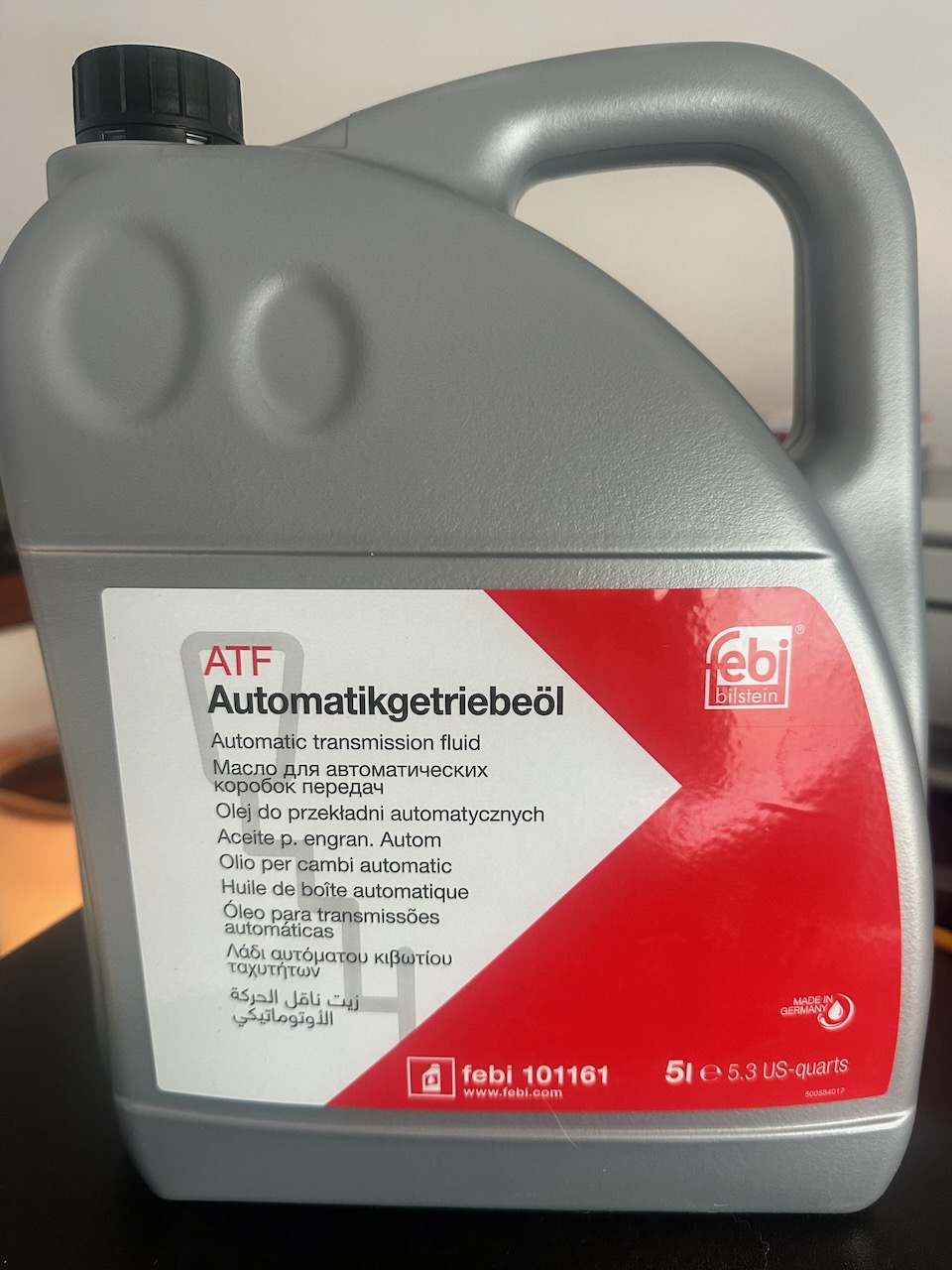

I received from my friend oil that he think it fit, does its ok?

Thanks
Guy
cruiserphil
Thu Jul 10 2025, 08:32pm


Joined: Jan 24 2010
Member No: #38
Location: Celbridge
 Hello Rozen 77,

This oil is not correct for the automatic transmission as it is JWS 3314.
If your car is a 2.2 or 2.7 HDi you need an oil matching JWS 3309.
If you car is a 3.0HDi you need an oil matching JWS 3324.
There is no filter.

Best regards,

Phil C.
rozen77
Fri Jul 11 2025, 08:31am
Joined: Jul 05 2025
Member No: #5897
Location: Tel Aviv
 Hello Phil,
Thank you for replay.

I have 3.0 Hdi year 2011.
what is the difference between JWS 3414 and JWS 3324 ?

Thanks
Guy
C6Dave
Fri Jul 11 2025, 09:06am


Joined: Oct 01 2009
Member No: #1
Location: Northumberland
rozen77 wrote ...


I have 3.0 Hdi year 2011.
what is the difference between JWS 3414 and JWS 3324 ?

A bit of research brings up this, which hopefully helps answers the question - Click Here -

3324 apparently has a lower viscosity to help meet Euro5 spec emmissions as per Volvo owners as well 'As Aisin Warner (makers of the C6 auto boxes) introduced transmissions with increased numbers of gears they needed to reduce the viscosity of the fluid used and introduced JWS 3324.'
Website
rozen77
Sun Jul 13 2025, 10:35am
Joined: Jul 05 2025
Member No: #5897
Location: Tel Aviv
 Hello DAVE,
Thank you for the link.
as I understand from the conversation in the link,
there is no clear answer if JWS3324 is better from 3309 , an I right?
Is only for later EURO spec that want less emission standards.
I don't understand why transmission oil has emission, it's not somethings that belong to Engine oil?

the Botton line, it if JWS3309, is risky to my transmission of my year Hdi 2011?

Thanks
Guy
C6Dave
Mon Jul 14 2025, 09:20am


Joined: Oct 01 2009
Member No: #1
Location: Northumberland
rozen77 wrote ...

I don't understand why transmission oil has emission, it's not somethings that belong to Engine oil?

Every thing in the drive train affects emissions due to additional load on the engine, even electrics and air con. Heavier oil in the gearbox would add 'drag' but I doubt it would make any difference to a garage MOT emission test due to the level of equipment used, and the tolerances allowed (in the UK anyway)

As for the fluid, sorry, can't help with that. I can only suggest you contact Asin direct for definitive technical advice on what fluid to use.
Website
cruiserphil
Mon Jul 14 2025, 10:55am


Joined: Jan 24 2010
Member No: #38
Location: Celbridge
rozen77 wrote ...

Hello Phil,
Thank you for replay.

I have 3.0 Hdi year 2011.
what is the difference between JWS 3414 and JWS 3324 ?

Thanks
Guy


Hello Guy,

I use Total LV MV which is JWS3324 although I would trust other manufacturer's oil quoting that spec. I'm not sure of the specific differences between JWS 3414 and JWS 3324 but 3324 is the specification for your transmission. I would not experiment with a different specification.

Best regards

Phil C.
rozen77
Mon Jul 14 2025, 02:51pm
Joined: Jul 05 2025
Member No: #5897
Location: Tel Aviv
 Hello Phil,

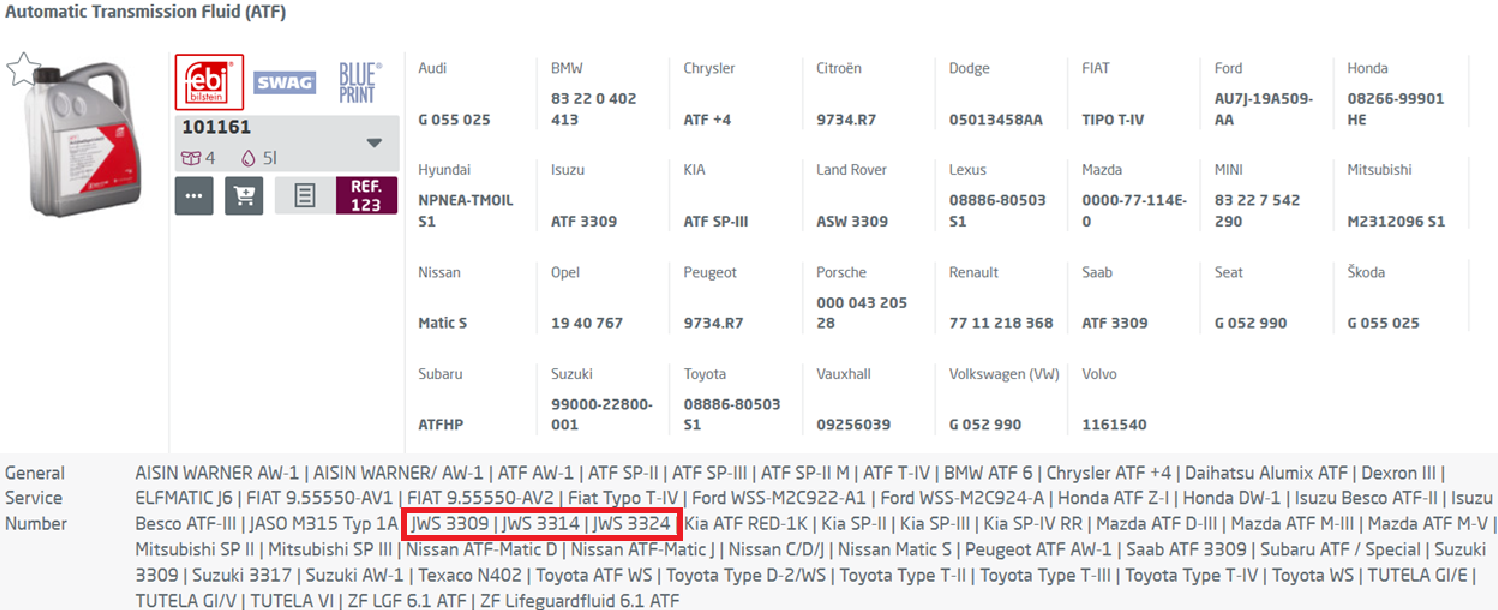

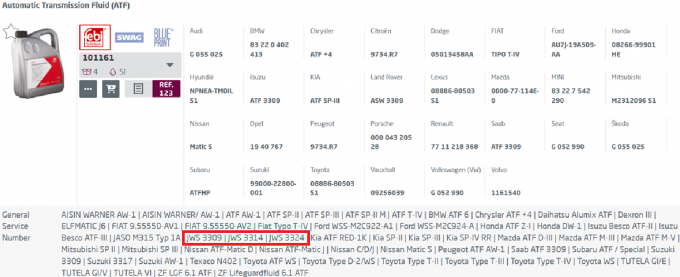

I asked FEBI about the oil that I bought and they confirmed that this oil the JWS 3324 is compatible with the febi 101161 product that purchase .

- Click Here -

https://partsfinder.bilsteingroup.com/en/article/febi/101161

so its mean that the oil that I bought has Spec JWS 3414 and JWS 3324
